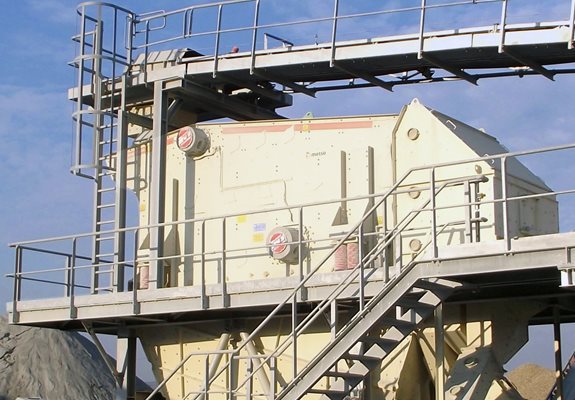

ES Series™ horizontal screens

High-efficiency elliptical motion screening

High-energy elliptical motion screens deliver up to 25% more capacity than conventional screens of the same size. Designed for all materials - from quarry rock to gravel - the ES Series ensures reliable, high-accuracy screening. Even in tough conditions like wet or sticky materials, it provides the aggressive action needed for consistent performance.

Up to 25% more capacity

Handles all material types with consistent accuracy, even in wet or sticky conditions.

High screening efficiency

Elliptical motion delivers superior separation compared to conventional linear screens.

Maximum uptime and durability

Simplified design minimizes fatigue stress and reduces downtime for maintenance.

Safer and easier maintenance

Gearless mechanism, coil spring covers, and extra deck space improve safety and access.

Highest screening accuracy with ES Series™ horizontal screens

High-efficiency elliptical motion screening

Metso ES Series™ high-energy elliptical motion screens deliver up to 25% more capacity compared to conventional screens of the same size. Designed to handle a wide range of materials—from quarry rock to gravel—they ensure reliable performance in applications that demand exceptional screening accuracy. Even in challenging conditions such as wet screening or sticky, dirty materials, ES Series™ provides the aggressive screening action you need.

Wide range of applications. Quarries, gravel pits, mines, and mobile screening plants.
Durable screen design. Side walls and the cross members are weld free to accommodate the fatigue stress.
Adjustable to increase capacity and performance. Can be fitted with either tensioned screening panels or modular snap on panels.
Easy and safe maintenance. Meet high health and safety standards.

Why choose ES Series™ screens?

Superior screening efficiency. ES Series™ screens use two unbalanced shaft lines rotating in opposite directions to create a powerful elliptical motion. This simple yet effective design outperforms conventional horizontal screens with linear motion and offers greater reliability than other elliptical motion screens. The result? Consistent, accurate separation—even in damp or sticky environments.
Maximum uptime. Engineered through advanced FEA and fatigue analysis, ES Series™ combines simplicity with durability. Reduced welding on cross members minimizes crack formation, while weld-free side plates enhance stress tolerance. With just two counter-weighted shaft lines and a robust grease lubrication system, maintenance is minimal. No timing devices, gears, belts, or oil leakage—there’s very little that can go wrong.
Fast, safe maintenance. Equipped with Metso’s MV vibrator, ES Series™ cuts replacement downtime in half thanks to its dust-proof design. Safety features include coil spring covers, rubber stabilizers, and high safety guards on belts. A gearless mechanism reduces noise levels, protecting operators’ hearing. Plus, with only one shaft line between decks and up to 50% more space inside, maintenance is safer and more comfortable.

Key Benefits

Up to 25% more capacity
High-energy elliptical motion for superior efficiency
Reliable performance in tough conditions
Minimal downtime and maintenance
Enhanced operator safety and comfort
