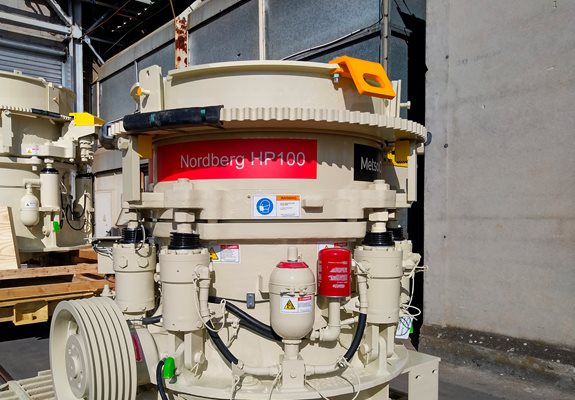

Nordberg® HP100™ cone crusher

Nordberg® HP100™ cone crusher is the smallest model of the Nordberg® HP Series™ cone crushers - Opens in a new window. It is often utilized in aggregates production as secondary, tertiary or quaternary crusher.

Characterized by the optimized combination of crusher speed, eccentricity, and cavity profile, Nordberg® HP100™ is has proved revolutionary in providing higher capacity, better product quality and suitability to a wider range of applications.

HP100™ is also available as portable version.

Optimized performance

This cone crusher a unique combination of crusher speed, throw, crushing forces and cavity design. This combination is renowned for providing higher capacity and superior end-product quality in all secondary, tertiary and quaternary applications. Field proven for years, HP series cone crushers are built to perform.

Increasing the stroke, the power and the retaining force while improving crusher body design and weight to withstand the force are principles of kinematics. A higher density in the crushing chamber improves the inter-particle crushing action, resulting in superior product shape, high reduction ratio and high capacity.

Cost efficient and ecological

In a size-class comparison, this crusher has a higher output capacity, higher density in the crushing chamber and better reduction ratio, producing higher on-spec yield end products with the same energy consumption. Nordberg® HP100™ is equipped with the latest high-efficiency motors, making it efficient and ecological crushing machine.

HP100™ produces finer products by limiting crushing stages, which lowers your investment cost and saves energy. This is achieved through a combination of optimized speed, large throw, crushing chamber design and increased crushing force. The efficient crushing action of Nordberg® HP100™ gives it the best power utilization per cone diameter.

Safe and user friendly

Designed for your needs, HP100™ is safe and easy to maintain. Fast and easy access to all the main components from the top and dual-acting hydraulic cylinders significantly reduce downtime.

Because we are working in potentially hazardous environments, this crusher is engineered to ensure maximum operator safety and easy maintenance.

Accessibility from the top of the crusher to the principal components, easy access for liner maintenance, mechanical rotation of the bowl for removal with a simple press of a button, and no backing compound on liners make Nordberg® HP100™ safe to maintain.

Less downtime, more confidence

HP100™ cone crusher delivers less downtime and increased operator confidence. Dual-acting hydraulic tramp-release cylinders are used to let the crusher pass tramp iron and to provide a large clearing stroke if needed. The double accumulator combination provides better reactivity of the hydraulic system.
