Metso`s innovative trunnion design is centered around making a changeout simple, quick and safe. The design uses a self-contained, pre-assembled and pre-lubricated
compact tapered bearing design.
Upgrade with added benefits
Safety & reliability
Superior safety with fewer repairs and maintenance, lower noise, less spillage and a cleaner environment.
Lower environmental impact
Retrofits & refurbishments significantly reduce raw material consumption when compared with the procurement of new equipment.
OEM quality, warranty & support
Unmatched parts quality with standard factory warranty and dedicated local support.

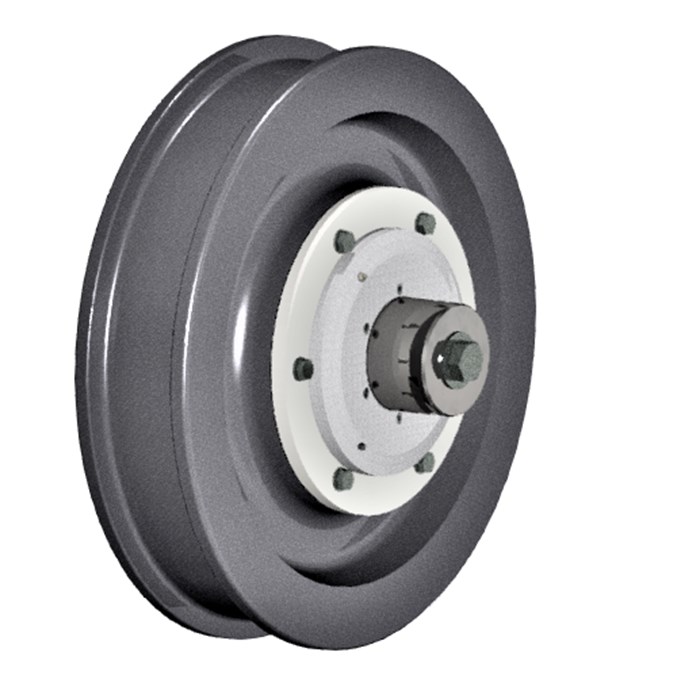

Trunnion Wheel Module
- Integrated trunnion wheel & shaft modules for easy changeout
- Compact cartridge bearing that is lubricated for life
- Secondary grease barrier to prevent contamination

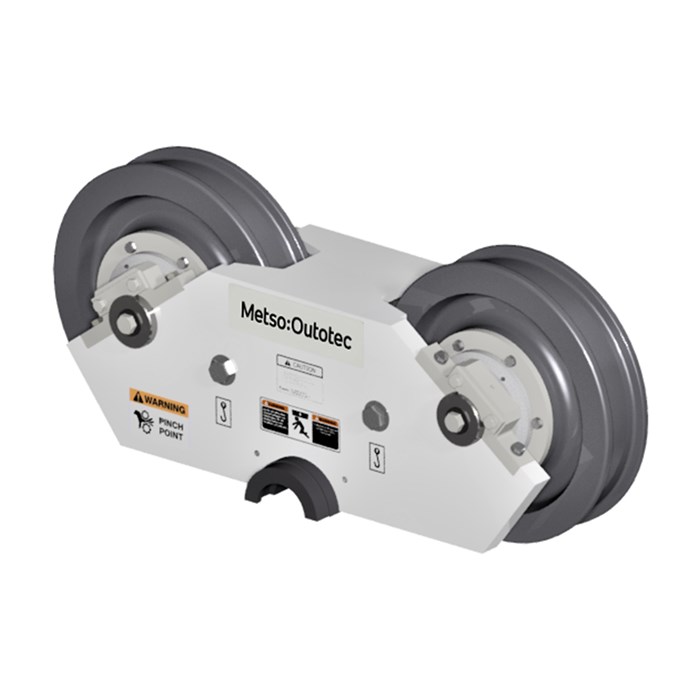

Equalizer Frame
- Quick & easy wheel changeout, no need to pull a pin
- Heavy duty frame to reduce wallowing of wheel pin bore
- The equalizer frame is no longer trapped and can be slid out to one side instead of being lifted clear of the base frame

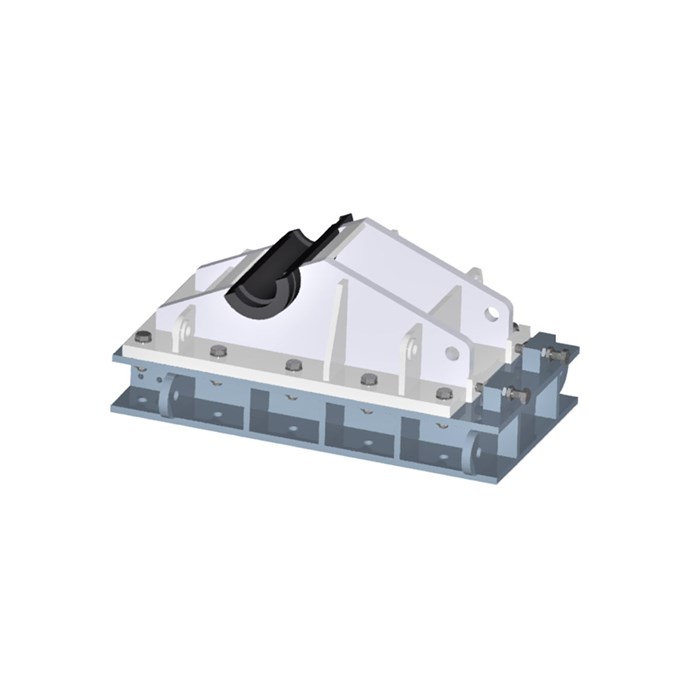

Base Frame
- Compact base frame to fit all installations and designed to keep elevations to a minimum
- Half tube design removes the risk of wallowed out bores in the frame
- Connecting sub-base frame designed to match the trunnion wheel assemblies with existing elevations and anchor bolt patterns
- Jacking pads and lifting holes to facilitate alignment
More than an upgrade
