VSF® X solvent extraction plant

Proven technology and leading modularization

With decades of technological experience and a proven concept, our modularized and sustainably designed VSF® X solvent extraction plant offers excellent scalability, high quality, fluent logistics, fast delivery and an inherently safe design all backed by performance guarantees.

Proven technology

Proven process and technology with industry’s most comprehensive scope of supply

Leading modularization

Efficient modular design and delivery

Inherently safe and sustainable

Safest solvent extraction plant for the operator

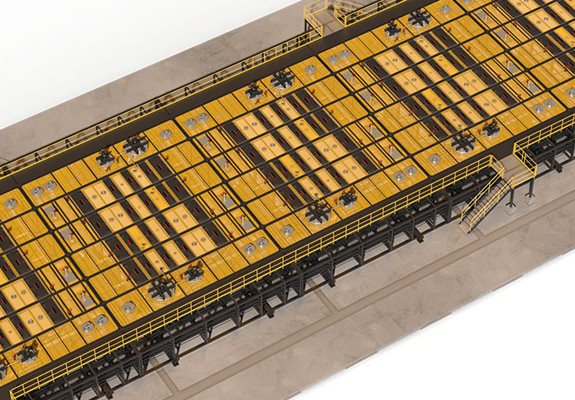

Metso VSF® X solvent extraction plant

Metso is a technology provider that offers a fully tailor-made flowsheet and a wide range of highly productized modular VSF® X equipment for the solvent extraction plant.

With decades of technological experience and a proven concept, our modularized and sustainably designed VSF® X solvent extraction plant offers excellent scalability, high quality, fluent logistics, fast delivery and an inherently safe design all backed by performance guarantees.

Our VSF® X solvent extraction technology has been globally utilized in flowsheets, processing complex ore bodies, to purify the pregnant leach solutions (PLS), resulting in proven production of high grade Cu cathode and Ni, Co, and Mn battery chemicals.

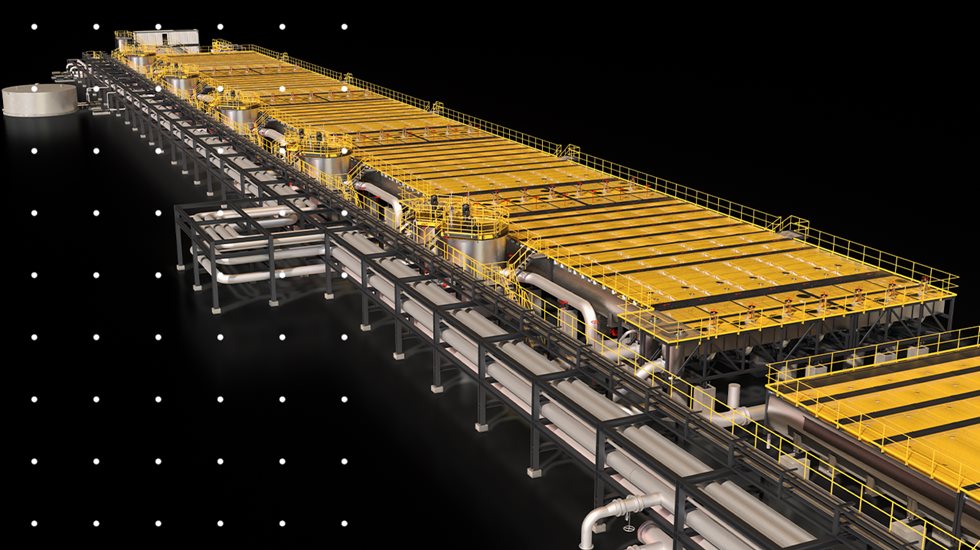

Check the video

Industry’s most comprehensive scope of supply

We have the industry’s most comprehensive scope of supply including VSF® X mixer-settler, dual media filters, activated carbon filters, GM filters, organic and crud treatment unit and digital solutions integrated as a fully functional plant.

{{decodeHtmlEntities(field.label)}}

Metso Solvent Extraction Technology

Since 1977, Metso has been developing its wide range of solvent extraction technologies, delivering both equipment and processes to its customers and has strong references and know-how for several applications e.g. Copper, Cobalt, Nickel and Manganese purification processes with high end-product quality achieved with high metal yield and minimized valuable metal lost.

Proven process

Proven process and technology with industry’s most comprehensive scope of supply
VSF® solvent extraction equipment and expertise delivered since year 1977 and VSF® X since 2015
Over 50 solvent extraction references and over 10 VSF® X references
High efficiency and yield proven in industrial scale
VSF® SX technology is globally well known and it is used at the world’s largest Cu SX plants

Comprehensive testing & research capabilities

Shaking test
Pilot tests
HSC SIM modelling and simulations
Long history of research and comprehensive data library

Competitive & extensive process guarantees

Highest guaranteed settling rate
Highest volumetric throughputs
Lowest guaranteed entrainment values

Leading modularization

VSF® X equipment has productized modular design and is configurated according to process specified

Dispersion flow
Residence time
Settling rate

VSF^®X mixer-settler

Our renowned SX knowledge is integrated in the innovative VSF® X mixer-settlers. This environmentally friendly product is available with fast-track delivery, predefined costs, state-of-the-art documentation and implementation, efficient logistics, and fast installation.

VSF^® X DOP unit

DOP (Dispersion Overflow Pump) Unit provides optimized droplet size distribution and excellent dispersion to give a very low entrainment values and fast and complete extraction reactions. It also offers highest volumetric throughputs.

VSF^® X Spirok unit

Spirok mixer unit maintain the dispersion to give enough residence time for the ion transfer reactions. Double helical impeller creates a gentle and uniform mixing with very low energy input. Vertical mixing pattern keeps the dispersion together and no small droplets are created.

VSF^® X settler

VSF (Vertical Smooth Flow) X modular deep settler combined with DDG X separation fences provides effective separation enabling efficient footprint and enhanced coalescence of small droplets minimizing entrainments.

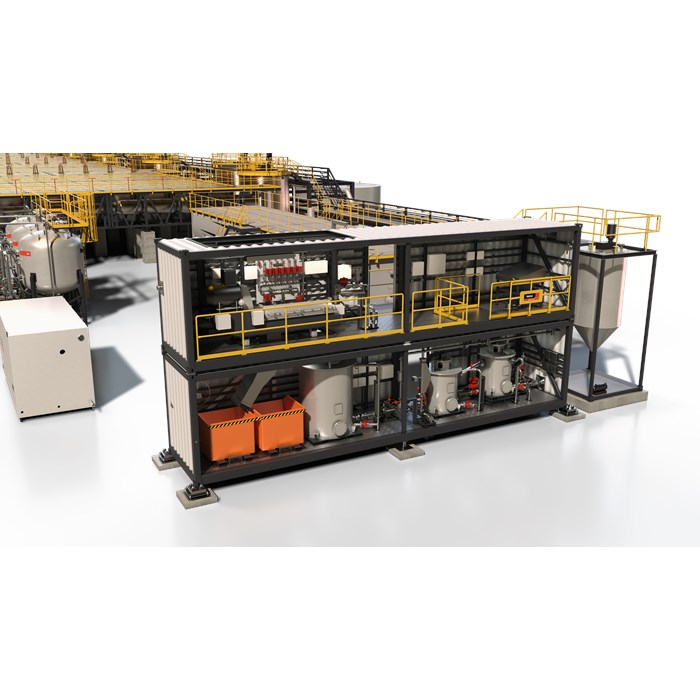

VSF® X organic and crud treatment unit

The organic and crud treatment unit is a ready-made auxiliary treatment unit for the VSF^®X plant. Designed to treat both formed crud and oxidated organic and return separated liquids back to the process. It enables efficient and continuous VSF^®X solvent extraction process and is easily integrated to VSF^®X plant.

Core differentiators:

Reduction of organic inventory losses
Pre-assembled and factory tested unit
Efficient and easy logistics
Plug and play installation at site
Inherently safe design

Core differentiators

Industry-leading references and expert know-how
Fluent logistics and installation
Fast delivery
Consistent high quality
Inherently safe design
Excellent scalability
Sustainable operations
Cost effective in capex and opex

Sustainable VSF® X solvent extraction technology to help our planet

Metso VSF® X solvent extraction is part of the Metso Plus product portfolio.

Emissions: Minimized VOC (Volatile Organic Compounds) by fully sealed equipment
Circularity: Modular units can be relocated and reused
Energy efficiency: Lowest energy consumption to maintain dispersion in mixer tanks
