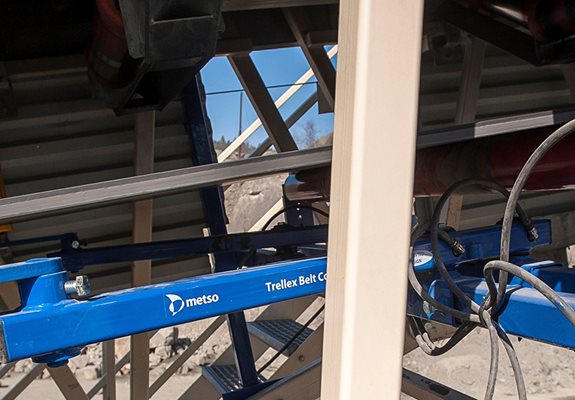

Conveyor belt guides

Guiding systems that keep the belts moving

With all the punishment a typical conveyor belt takes from the elements and continual loading impacts, it is normal that some misalignment occurs. Luckily this problem can be prevented. Conveyor belt guides and guiding systems keep your belts moving, extend wear life, protect the conveyor frame, increase safety at your site, and positively contribute to your overall sustainability standards.

Versatility

The most complete product range on the market to maximize output and safety of your conveyor operations.

One-stop partner

Dedicated to keeping your operation as productive and profitable as possible.

Sustainability

Durable conveyor parts designed for long component life.

Reduced downtime

Smart, simple design that makes parts efficient, robust and maintenance friendly.

Trellex RBC conveyor belt guide's properties and features

The greatest risk of belt misalignment is with reversible conveyors. Trellex RBC is an elegant solution to this problem. Mounted on top of the belt on the return side, its edge rollers detect the slightest deviation from the ideal belt path and guide it back on track automatically, regardless of which direction the belt is travelling.

Material properties

The basic construction is of powder-coated steel. Extra PU protection is available as an option to further extend the rollers’ wear life. High quality bushings are used in the pivot points to ensure optimal belt guidance. For easy maintenance, we also offer an optional central lubrication kit along with this product. The guide rollers are easy to install and replace, and the whole system can be adjusted to various belt widths and types.

Special features

Thanks to ultra-sensitive mistracking detection with fast response, Trellex RBC is a very smart way to minimize maintenance and spillage clean-up costs, and to prevent costly damage to your conveyor belt and frame. All of these factors work together to not only improve availability and your bottom line, but to reach your sustainability goals.

Trellex RBC technical description

Construction material: Steel, S235JRG2
Surface treatment: Powder-coated blue RAL 5005

Installation

Belt speed: <2,5 m/s

Trellex RBC technical specifications

{{decodeHtmlEntities(field.label)}}

Trellex SBC and Trellex SBC-HD conveyor belt guides' properties and features

Mounted on the return part of the belt, Trellex SBC and Trellex SBC-HD are simple, robust systems that centre the conveyor belt automatically as needed. They perform reliably even in the toughest working conditions, keeping your belt on track and protecting both belt and conveyor from harm. This means fewer costly stops for maintenance or adjustments, fewer staff interventions and hence, a safer, more productive work environment.

Material properties

The basic construction is of powder-coated steel. Extra polyurethane (PU) protection is available as an option to further extend the rollers’ wear life. Highquality bronze bushings are used in the pivot points to ensure optimal belt guidance. For easy maintenance, we also offer an optional central lubrication kit along with this product.

Special features

Ultra-sensitive mistracking detection and fast response make Trellex SBC and SBC-HD very high-performance belt guiding systems. The guide rollers are easy to install and replace, and the whole system can be adjusted to various belt widths and types.
