Trellex ceramic pulley bar

for belt conveyors

Trellex® ceramic pulley bar is a quick replaceable lagging system suitable to service a wide range of mining and aggregates belt conveyor applications. It is fastened with self tapping screws directly onto the pulley shell, so it´s easy to install without removing belt or pulley.
Versatility

The most complete product range on the market to maximize output and safety of your conveyor operations.

One-stop partner

Dedicated to keeping your operation as productive and profitable as possible.

Sustainability

Durable conveyor parts designed for long component life.

Reduced downtime

Smart, simple design that makes parts efficient, robust and maintenance friendly.

About Trellex® ceramic pulley bar

Application

Trellex ceramic pulley bar is used in applications that require an easy installation and operation. Benefits include the application and removal of the lagging without removing the drum or belt from the conveyor system. It is fastened with self-tapping M8 screws directly onto the pulley shell, so it's easy to install without removing belt or pulley.

Design

Trellex ceramic pulley bar is made of hardwearing rubber with high-quality aluminum oxide ceramics and this product has the perfect combination of elasticity and rigidity. The ceramic inserts is made of an extremely hardwearing material, which improves the grip between the lagging and the belt. The round shape of the ceramic inserts eliminates sharp edges to avoid damage to the belt.

360°

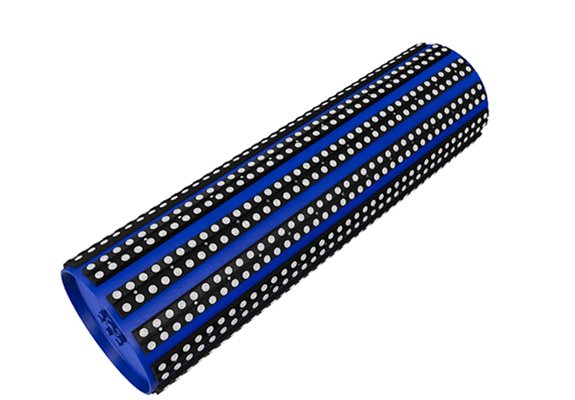

Ceramic pulley bar 3D

Installation: Bolted to pulley surface



Ceramic pulley bar 3D

Benefits and features

  • Improved belt tracking

  • Reduces slippage between belt & pulley

  • Suitable for light, medium and heavy applications

  • Suits any pulley size

  • Easy to install – without removing belt or pulley

  • Reduced application time

Material: Wear Rubber Trellex T60 ShoreA, Round ceramic tiles >90% Al2O3
Wear side: Diamond-pattern
Installation: Bolted to pulley surface

16x70x1600 mm

Storage room for lagging must be cool, dry and kept clean.
Protect the lagging from dust, water etc. with suitable coverings.
Avoid storage places near sources of ozone generating equipment.
UV light can damage the product – protect product against direct sunlight and strong artificial light.
Do NOT store outside.
Do NOT store together with fuels, lubricants, acids, disinfectants, solvents or other chemicals.
Allow 24 hours before use when lagging is removed from cold storage.
Shelf life for lagging: 3 years.
(Stored covered out of sunlight UV and away from ozone generating equipment)

Use this formula to determine if pulley bars can be used:

F =    P
      hxDxB


P = power (kW)
h = belt speed (m/s)
D = pulley diameter (m)
B = pulley width (m)
F should not exceed 130.

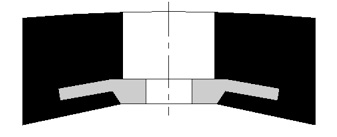

Shape is designed to suit all pulley diameters:

Trellex pulley bar selection web.jpg
