Trellex Cerlag slidable ceramic pulley lagging

Material: Wear rubber 65 ShoreA, ceramic tiles >95% Al2O3
Installation: Welded
Fire resistant & Anti static, FRAS: Available on request
Pad width: 135mm
Total width: 160mm (inc. Retainer)

Pads: 17x135x1687 mm, thickness variation ±0,5mm
Single & double retainer: length=2030mm

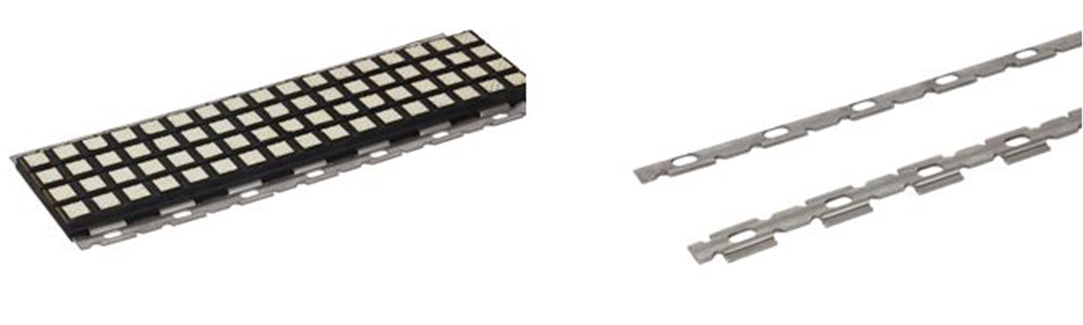

Left: Ceramid pads and retainer

Right: Single and double retainer

Storage room for lagging must be cool, dry and kept clean.
Protect the lagging from dust, water etc. with suitable coverings.
Avoid storage places near sources of ozone generating equipment.
UV light can damage the product – protect product against direct sunlight and strong artificial light.
Do NOT store outside.
Do NOT store together with fuels, lubricants, acids, disinfectants,
solvents or other chemicals.
Allow 24 hours before use when lagging is removed from cold storage.
Shelf life for cold vulcanizing lagging: 3 years.
(Stored covered out of sunlight UV and away from ozone generating equipment)

Calculate your need

There are two ways of applying slide laggings:
The butt seam method which is the most economic option. Pads are cut to fit the pulley face width and the remaining ends of each cut pad are used butted together. Pieces shorter than 100 mm should be discarded.

The full width method when no butt seams are desired. Each pad row is provided with full face width pads that have no butt seams. Example pulley diameter 600 mm & face width 1000 mm.

Butt seam method:
1.

Number of rows = Pulley diameter x 3,14
                                   160

Number of rows = 600 x 3,14 = 11,775
                                160

Round down to closest whole number -> 11.

2. Multiply the number of rows of pads by the pulley face width, divide with 1687 (full length pad in mm)

11 x 1000 = 6,5
  1687

Round up to closest whole number -> 7 full length pads required.

Butt seam method X min 100 mm

Full width method:
1. Same as 1. above.

2. Calculate how many full width sections you can get from a standard size pad.

1687 = 1,7
1000

Round down to closest whole number -> 1.

3. Divide number of rows with how many full widths you can get out of one pad.

11 = 11  -> 11 full length pads required.
1

Retainers:

Double retainer = (Face width + 500mm*) x number of rows = 5,7 -> 6 pcs
                                   Length of retainer

*Retainer length/Row = Face width + 25mm on each side.

Single retainer = (Face width + 50mm*) x 2** = 1,03 -> 2 pcs
                                   Length of retainer

**Always two.
