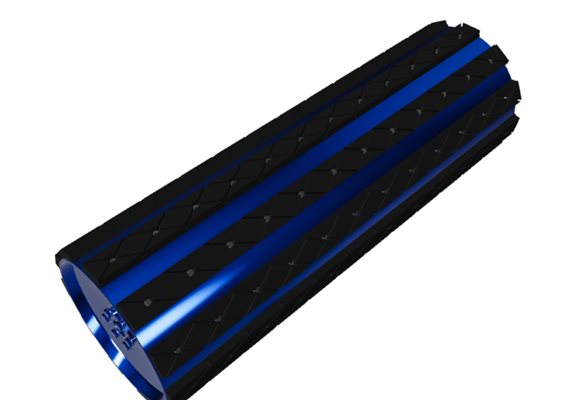

Trellex pulley bar rubber lagging

Material: Wear Rubber Trellex T60 ShoreA
Wear side:Diamond-pattern
Installation: Bolted to pulley surface

22x70x1365 mm

Storage room for lagging must be cool, dry and kept clean.
Protect the lagging from dust, water etc. with suitable coverings.
Avoid storage places near sources of ozone generating equipment.
UV light can damage the product – protect product against direct sunlight and strong artificial light.
Do NOT store outside.
Do NOT store together with fuels, lubricants, acids, disinfectants, solvents or other chemicals.
Allow 24 hours before use when lagging is removed from cold storage.
Shelf life for lagging: 3 years.
(Stored covered out of sunlight UV and away from ozone generating equipment)

Use this formula to determine if pulley bars can be used:
F = P
h x D x B
P = power (kW)
h = belt speed (m/s)
D = pulley diameter (m)
B = pulley width (m)
F should not exceed 130.

Shape is designed to suit all pulley diameters:

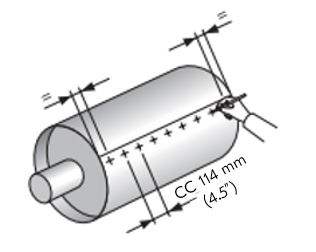

Hole centers on the drum, CC = 114 mm (4.5"):

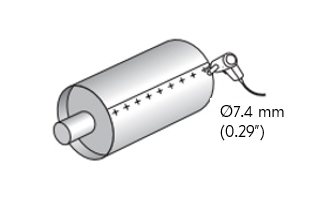

Hole diameter 7.4 mm (0.29") for M8 self tapping screws:

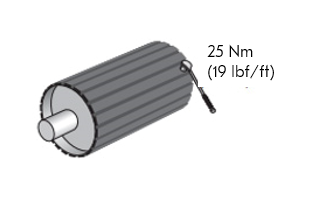

Recommended tightening torque 25 Nm (19 lbf/ft):

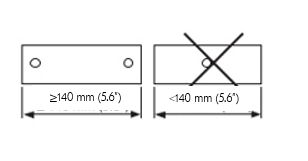

Never install a piece that is shorter than 140 mm (5.5") and never use fewer than two screws:

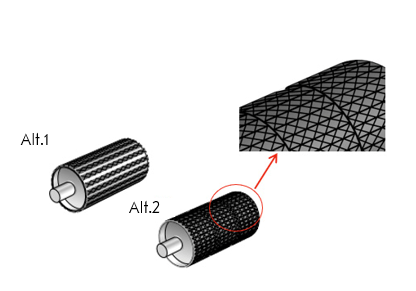

Standard distance between Pulleybars is 35 mm. At belt speed >1.5m/s the distance between the pulley bars can be as little as 3 mm:

To avoid high noise level at belt speed >1.5 m/s we recommend installation as alternative 2
